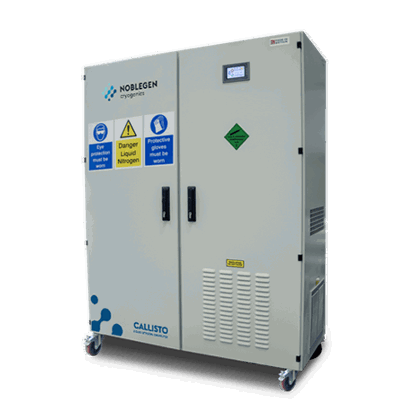

Callisto LN40A

Get a quote

Overview

The Callisto Series is a range of reliable, and highly efficient on-site liquid nitrogen generators with a dual cabinet design allowing for larger liquid production and storage. Supporting numerous applications in laboratories, research institutes, universities, hospitals, dermatology clinics and many more, the small footprint, low power consumption and low noise system make the Callisto one of the most user-friendly on demand liquid nitrogen generators available on the market today.

Callisto liquid nitrogen generators come with various safety features as standard, giving you peace of mind and a far safer, dependable and more convenient alternative to liquid nitrogen deliveries.

The Callisto LN40 produces 40 litres per day and comes with a 1.5m vacuum insulated hose as standard. An internal storage volume of 100 litres allows for efficient filling of freezers or dewars, or direct to the application without having to transfer from bulk. Water cooled option is available for more demanding environmental conditions.

Application types

IVF, Animal husbandry, Bio-preservation, Pharmaceuticals, Semi-conductor research, Research laboratories

Part number

NG20-0004

Status

Available

Features

  • LN40A features plug and play convenience
  • Eliminate boil off loss with no loss pressure system
  • High purity sterile liquid nitrogen
  • Boost function
  • Intelligent level sensor
  • Automatic standby when liquid nitrogen storage full
  • Colour touch screen with real time display
  • Vacuum protection system
  • Nitrogen pulse flow system ™
  • Built-in oxygen analyser
  • Sterile filtration
  • Low power consumption
  • Water cooled option

Specifications

Gas

Liquid nitrogen production (l/hr): 40 @ standard 1.5 bar
Liquid nitrogen purity: >99% (<1.0% O2)
Liquid Nitrogen tank volume (litres):100
Liquid nitrogen pressure (bar g): Up to 1.5

Site & Installation

Power consumption: 4.0Kw
Power supply (3Ø + neutral and earth): 380/400/415V - 50Hz or 460/480V - 60Hz or 200V - 50/60Hz
Noise level: <60dba

Dimensions & Weight

LN2 enclosure footprint: 1.4m x 0.65m1.48m x 0.66m x 1.86m (58.2 x 26 x 73.2 in)
LN2 enclosure weight: 491kg (1082 lbs)
